Gas Singeing Machine

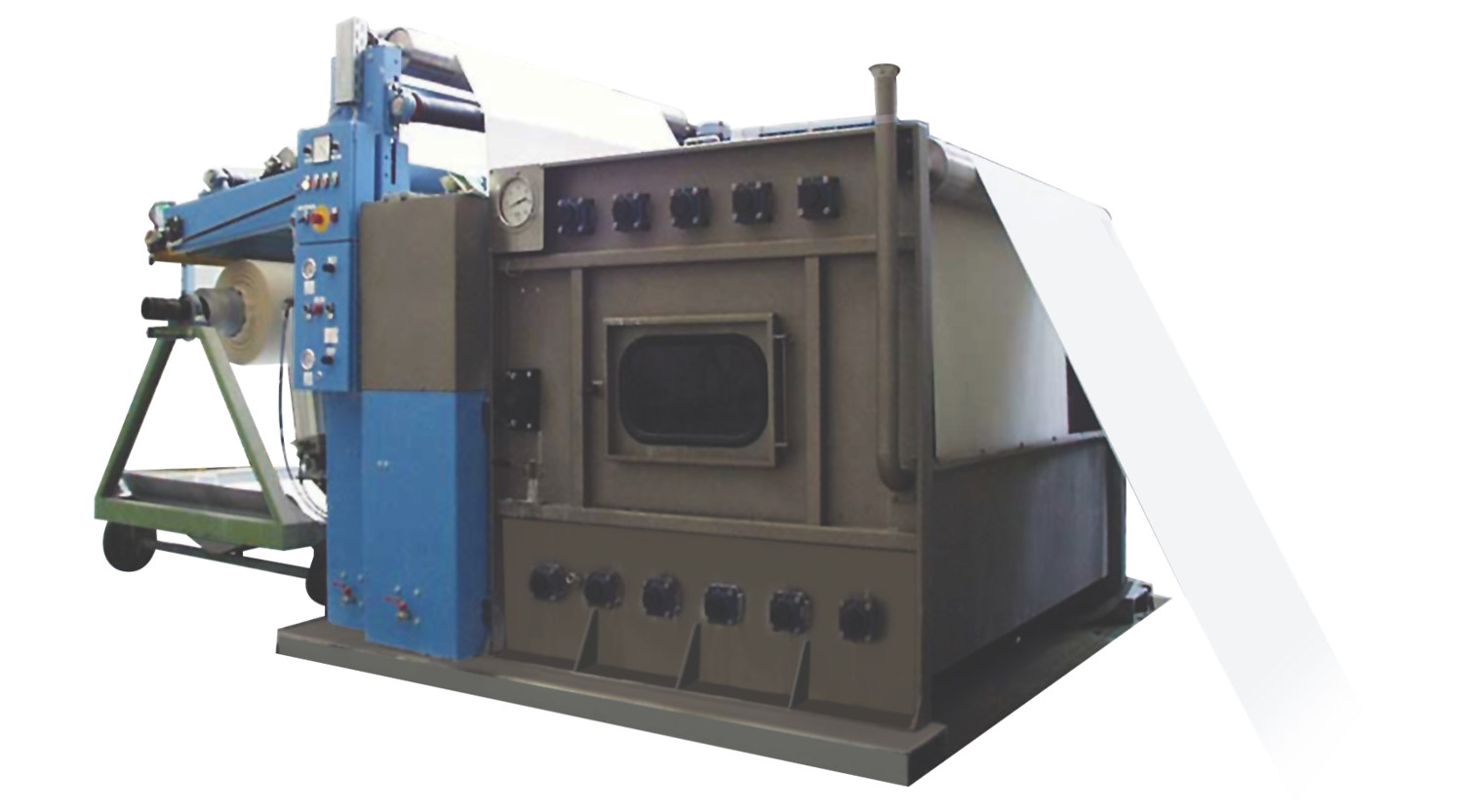

DESIZE UNIT WITH HEAVY NIP &
BATCHING CENTER OF SURFACE WINDER

DESIZE OPEN WIDTH WASHING COMPARTMENT UNIT WITH
HEAVY NIP AND CONTACT LESS WINDER
DESIZE OF CELLULOSIC FIBER WOVEN FABRICS.

  • DESIZE WITH HEAVY NIP AND BATCHING CENTER OR SURFACE WINDER.
  • STAINLESS STEEL COMPARTMENT, FABRIC CONTENT UPTO 20 METERS OR CAN BE
    CUSTOMISED AS CUSTOMER REQUIREMENT.
  • TOP ROLLER DRIVEN OR NON DRIVEN.
  • FILTER TO REMOVE THE LOOSE FIBERS OR OTHERWISE FROM THE LIQUOR.
  • HEAVY NIP COULD BE 3.7 KW TO 5.5 KW DEPENDING UPON FABRIC TREATED.
  • BATCHING SYSTEM IS CENTER WINDER TYPE. THE TROLLEY IS COUPLED WITH
    GEARED MOTOR WITH FLEXIBLE SHAFT AND COUPLERS.

‘FABRIC SURFACE CLEANERS’
BRUSHING & BEATING BRUSHING UNIT

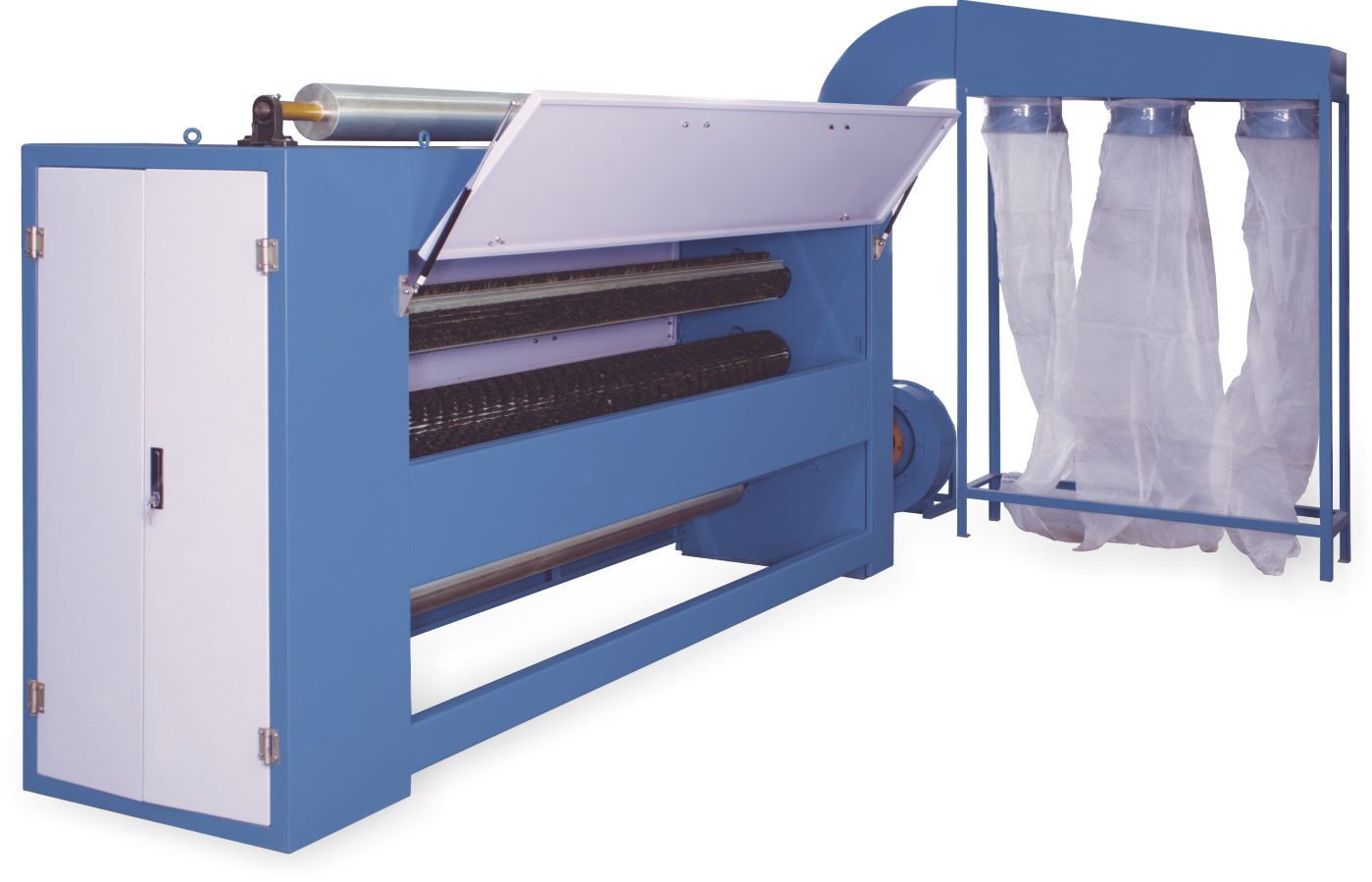

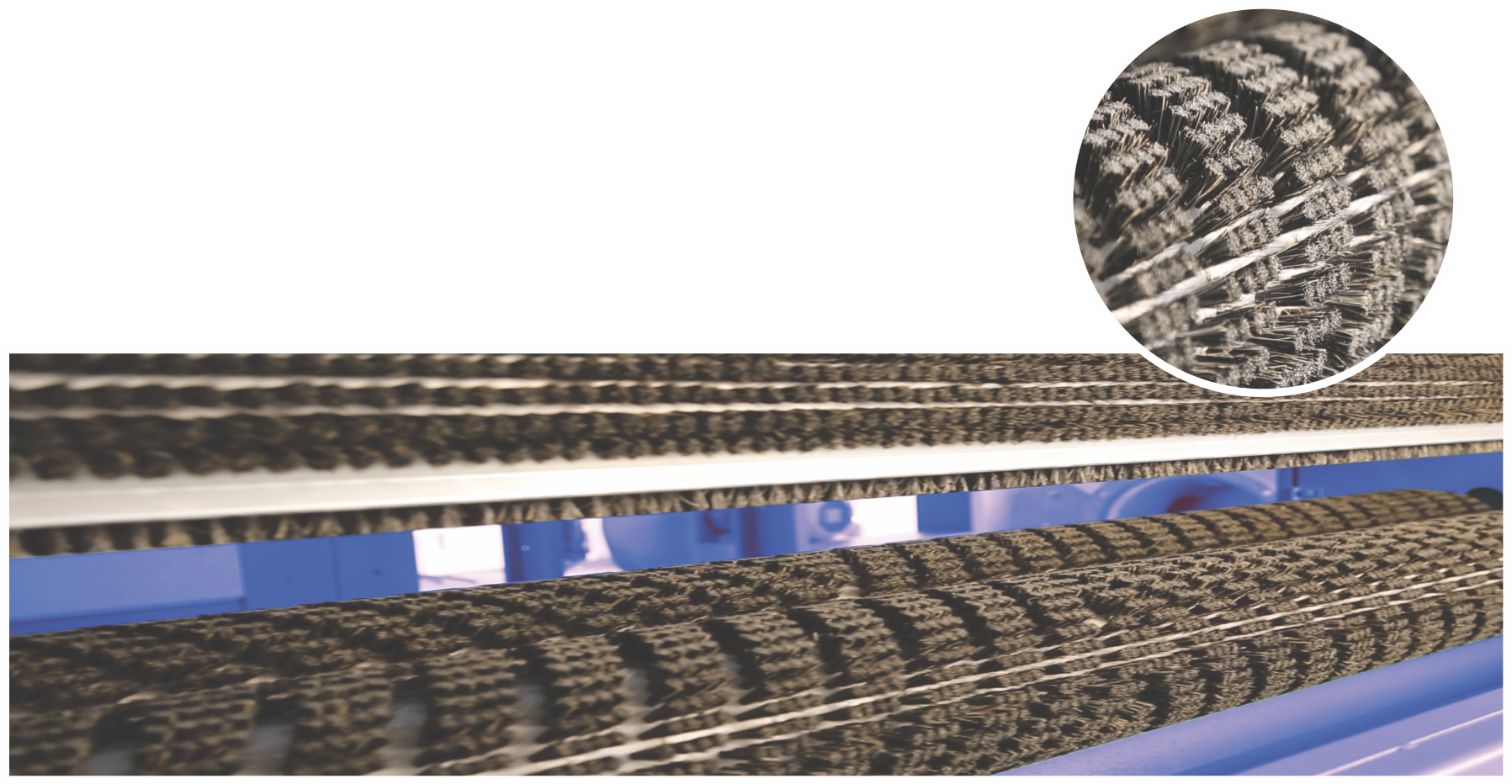

‘PRE-BRUSHING’ PRE-CLEANING BRUSHING UNIT
( BRUSHING UNIT WITH DUST COLLECTOR UNIT )

‘FABRIC SURFACE CLEANERS’
BRUSHING AND BEATING BRUSHING UNIT

AVAILABLE FOR VARIOUS FABRICS WIDTHS

ROLLER WIDTH W/W A B C EXHAUST FAN
2000 mm 1800 mm 2000 2876 4010 4kw, 22m3/min, 1805pa
2200 mm 2000 mm 2200 3076 4210 4kw, 22m3/min, 1805pa
2400 mm 2200 mm 2400 3276 4410 4kw, 22m3/min, 1805pa
3000 mm 2800 mm 3000 3876 5010 5.5kw, 66m3/min, 2345pa
3200 mm 3000 mm 3200 4076 5210 7.5kw, 78m3/min, 2255pa
3400 mm 3200 mm 3400 4376 5410 7.5kw, 78m3/min, 2255pa

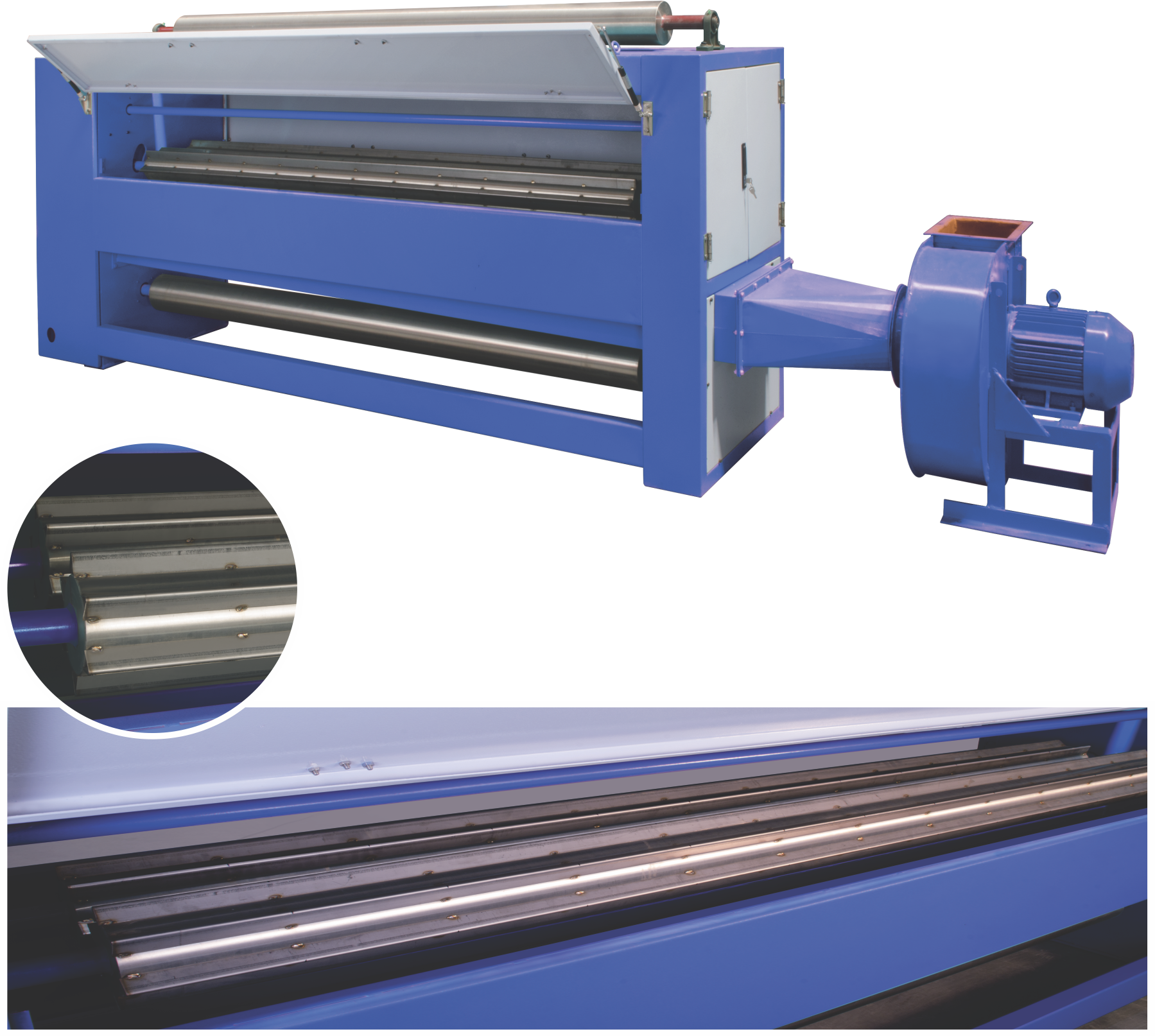

POST-CLEANING BEATER UNIT

‘POST-BRUSHING’
POST-CLEANING BEATER UNIT

AVAILABLE FOR VARIOUS FABRICS WIDTHS

ROLLER WIDTH W/W A B C EXHAUST FAN
2000 mm 1800 mm 2000 2876 3990 5.5kw,66m3/min, 2345pa
2200 mm 2000 mm 2200 3076 4190 5.5kw,66m3/min, 2345pa
2400 mm 2200 mm 2400 3276 4390 5.5kw,66m3/min, 2345pa
3000 mm 2800 mm 3000 3876 4990 7.5kw,78m3/min, 2255pa
3200 mm 3000 mm 3200 4076 4190 7.5kw,78m3/min, 2255pa
3400 mm 3200 mm 3400 4376 5390 7.5kw,78m3/min, 2255pa

WORLD CLASS DUAL JET BURNER
( GAS OPERATED ) FABRIC SINGEING MACHINE
